High-power Automatic Mirror Alignment System

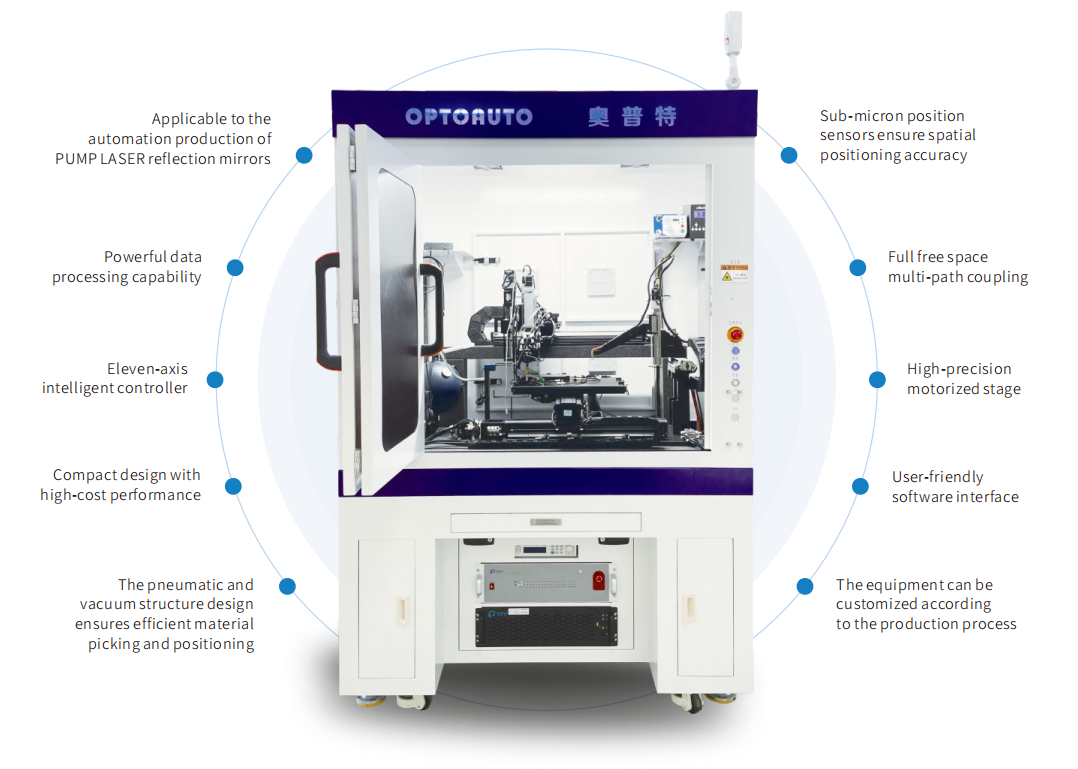

Our company’s independently developed High-power Automatic Mirror Alignment System (Model: OA11000-PLM) is designed for the fully automated production of array semiconductor fiber-coupled pump lasers. The system features a pneumatic and vacuum structure design to ensure efficient material picking and positioning, and uses high-precision stainless steel motorized stages to ensure precise movement in six-dimensional space. We provide an eleven-axis intelligent controller with self-developed operating software. Compared with manual assembly, this automatic alignment system can significantly improve production capacity, reduce dependence on skilled operators, and ensure product consistency.

The system comprises a coupling unit, automatic dispensing unit, imaging unit, control unit, and programmable control software. The core coupling unit features Japanese imported motors with high accuracy and long service life, ensuring long-term stable operation of the system. The combination of efficient algorithms, our unique control technology, and dispensing design ensures that the system’s comprehensive performance is comparable to that of imported equipment from abroad.

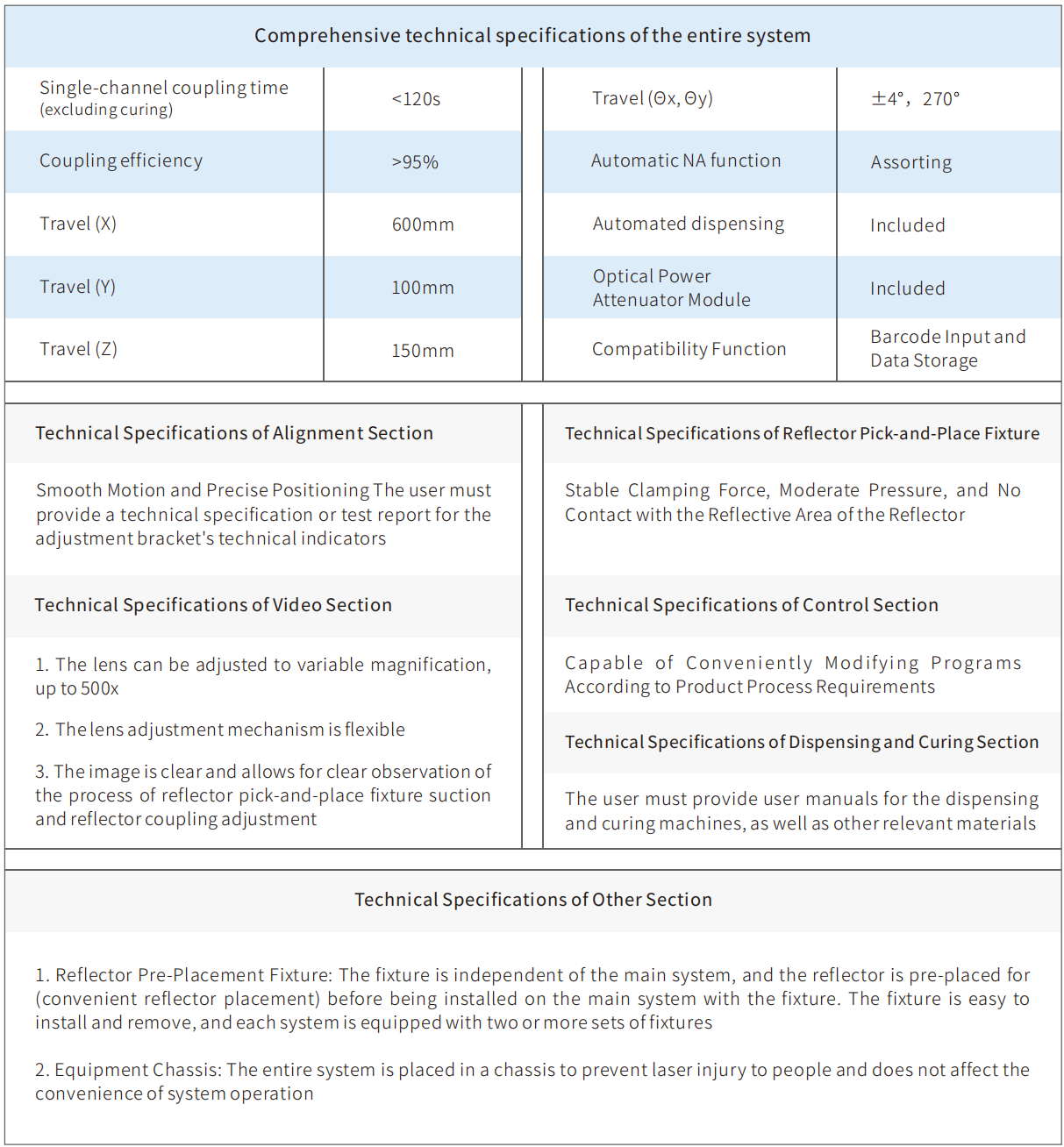

Single-channel coupling time (excluding curing)

The system is capable of automatically powering up chips, picking up reflectors, fine-tuning couplings, dispensing and curing, and saving customer data to their database;
The reflector picking fixture is equipped with a vacuum sensor, which will automatically stop and alarm if the reflector cannot be picked up;
The equipment is compatible with multiple products, and the spacing and height of each channel can be adjusted as required;
At least one continuous automatic coupling of all reflectors for a single product can be achieved in the specified order according to the process requirements, without touching and damaging the customer’s fibers during movement;
It is possible to freely select a certain optical path for coupling, rather than simply coupling in a specific order (from reflector 1 to reflector N), so that users can rework the reflector coupling of a certain optical path as needed;
Automatic adjustment of the base position, and automatic lowering of the power probe;

Coupling efficiency

Automatic recognition of the mirror position, and automatic smooth placement into the coupling area;
After the chip is powered up, the system automatically fine-tunes the reflector according to the optical power until the maximum power value is coupled;
The power-up process can gradually increase from low current to rated current;
Uniform distribution of dispensing, with dispensing length adjustable within 3-9mm;
The system encompasses multiple modes, including Operator Mode and Engineer Mode. The Operator Mode boasts a straightforward and user-friendly interface that is easy to navigate, whereas the Engineer Mode is fully functional and facilitates convenient debugging. It enables manual control of each module and can modify programs to accommodate product processes. It is proficient in performing various sensor tests, dispensing tests, and power-up tests.

Name	High-power Automatic Mirror Alignment System
Model	OA11000 – PLM
Pressure range	0.6 ± 0.1 MPa
Rated voltage	220V / 16A
Rated Power	3 KW
Power supply	(198~242) VAC，50Hz
Vacuum source	-0.07Mpa
Network	Cat5/6
Outline dimension	W1300xD1100xH2000mm (excluding the expanded portion of the observation window and the display)
Weight	800kg
Operating environment	Avoid high temperatures and ensure good lighting in the working area. Do not expose the equipment to moisture and do not use it in workshops without adequate rain protection measures. For indoor use only.
Equipment structural requirements	The equipment’s structural layout should be reasonable, with no interference between modules, and with sufficient clearance.
Other requirements	① The equipment’s design and manufacturing should feature advanced mechanical structure, process manufacturing, control systems, and user-friendly design, while ensuring safe operation. ② The necessary standard configuration for the equipment’s normal use must be complete and matching, including all corresponding accessories, cables, tools, and spare parts.

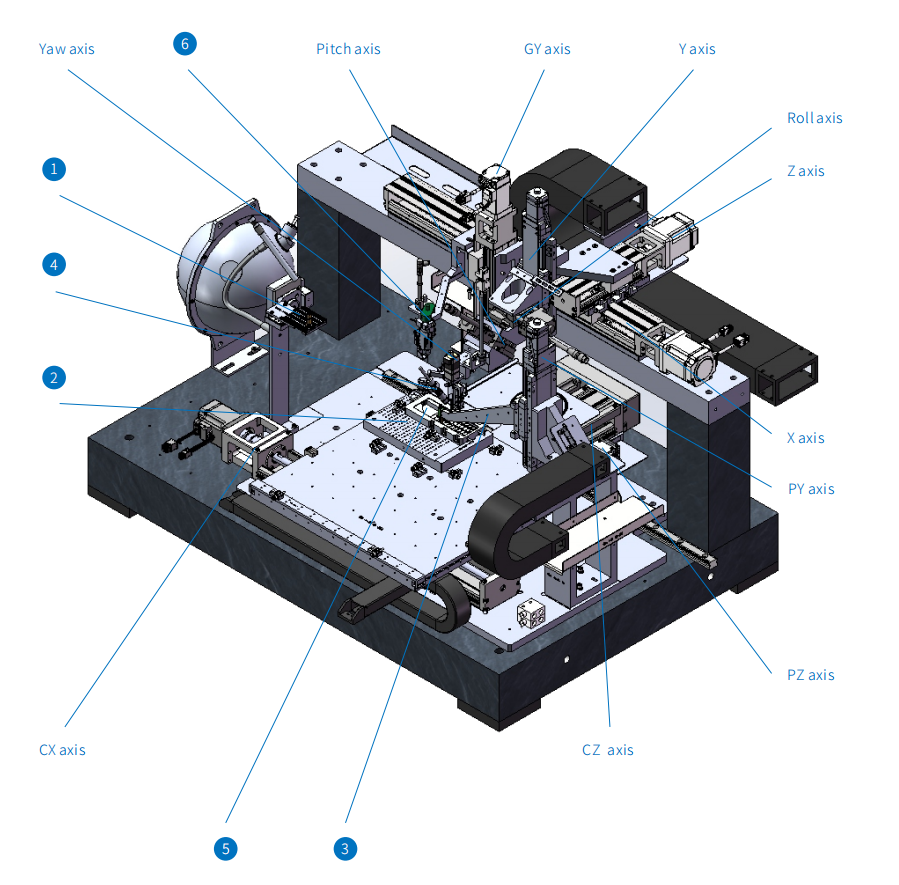

S/N	Name	Remarks
1	Automatic Feeder	Providing automated feeding and monitoring
2	Module positioning fixture	Mainly consisting of the platform positioning plate and custom-made modules
3	Automatic power-on device	Providing necessary travel for powering on
4	UV curing	To cure the glue with the UV rod
5	Reflective mirror picking fixture	Sucking the lens and ensuring suction accuracy with an attached sensor
6	Automatic dispensing device	For dispensing
7	X axis	Travel: 600mm, Unidirectional positioning accuracy: ≤25μm Repetitive positioning accuracy: ±3μm
8	Y axis	Travel: 100mm Resolution: {Full/Half: 4μm/2μm, Microstep(1/20 Microstepping) 0.2μm}
9	Z axis	Travel: 150mm, Unidirectional positioning accuracy: ≤20μm Repetitive positioning accuracy: ±3μm
10	CX axis	Travel: 540mm, Unidirectional positioning accuracy: ≤25μm Repetitive positioning accuracy: ±3μm
11	CZ axis	Travel: 540mm, Unidirectional positioning accuracy: ≤25μm Repetitive positioning accuracy: ±3μm
12	GY axis	Travel: 200mm, Unidirectional positioning accuracy: ≤20μm Repetitive positioning accuracy: ±3μm
13	PY axis	Travel: 100mm Resolution: {Full/Half: 4μm/2μm，Microstep(1/20 Microstepping) 0.2μm}
14	PZ axis	Travel: 100mm Resolution: {Full/Half: 4μm/2μm，Microstep(1/20 Microstepping) 0.2μm}
15	θX (Pitch axis)	Travel: ±4°, Repeated positioning accuracy: within ±0.001°
16	θY (Yaw axis)	Travel: 270°, Positioning accuracy: 0.0144°
17	θZ (Roll axis)	Travel: ±4°, Repeated positioning accuracy: within ±0.001°
